3/ Determine The Type Of Foundation
1. PATIO STONE FOUNDATION
If the ground is stable and has sufficient drainage, you can set patio stones directly on firm, compacted soil. If not, lay on gravel or crushed rock as previously described.
GARDEN SHEDS: Starting with one floor section, position stones around its perimeter and specific joists. (For details, see specific instruction manual) Use a 2x4 straight piece of lumber on edge and a carpenter’s level to position correctly. Add or remove soil/sand under each stone until level. Complete remaining floor sections in the same manner. When all floor panels are level with each other, flip over, screw together and place back on level foundation.
2. 4x4 PRESSURE TREATED BEAM FOUNDATION
You can build directly on pressure-treated beams or railroad ties laid on a properly prepared construction site. Run beams perpendicular to floor joists. Use a 2x4 straight piece of lumber on edge and a carpenter’s level to position correctly.
To prevent the beams from shifting, secure them with a 1/2" inch rebar inserted through holes drilled in the beams and driven 3 to 4 feet into the ground. Leave each side or end of the foundation open to promote drainage and air circulation beneath the floor.
4x4 PRESSURE TREATED FOUNDATION
This simple foundation consists of pressure treated beams laid directly on compacted gravel base. Use 1/2 " rebar to prevent beams from shifting. Joists are attached to beams with 16d galvanized nails.

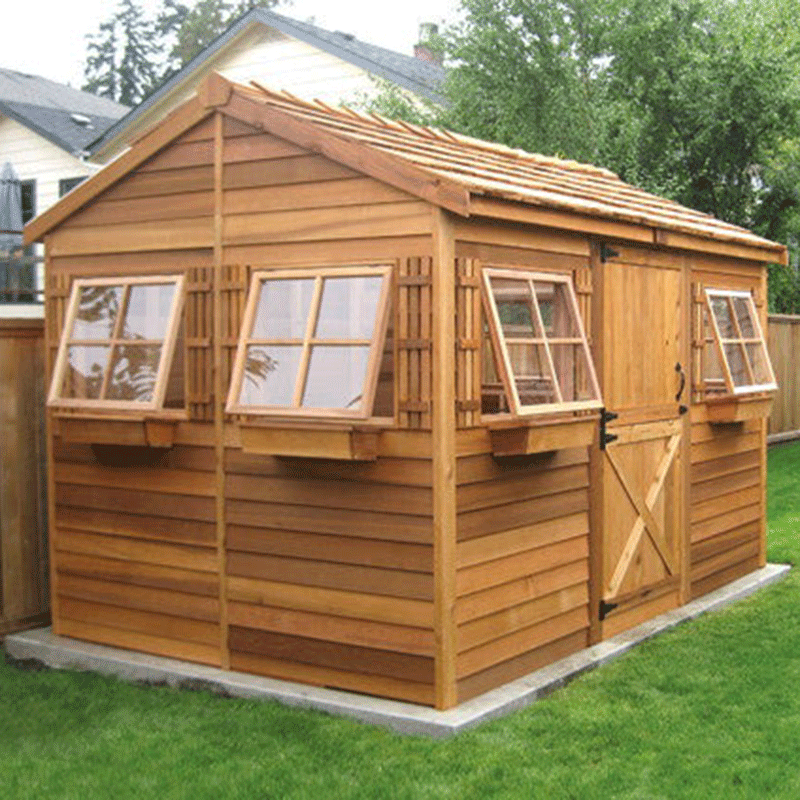

3. CONCRETE SLAB FOUNDATION
Typically a slab 3-4 inches thick laid over a subbase of 4 inches of gravel or crushed rock is sufficient but may vary depending on your geographic location.
Using either mix your own concrete of having it delivered by truck, ready to pour, depends on how much time and effort you have to dedicate to the project. A slab for our 8x10 foot Rancher or a 10 foot gazebo both to a depth of 4 inches will require approximately 1 cubic yard of premixed concrete.
Use the following procedure:
1. Excavate the slab area and footing trench.
2. Excavate the slab area to a depth 6 inches. This would put the finished slab surface 2 inches above ground (4 inches of gravel)
3. Set up your batter board strings to represent the outside face of the slab. At each corner, drop a plumb line from the intersecting strings to the bottom of the trench, then drive a 2x4 stake at this point. Using the plumb bob again, drive a nail into the top of the stake where the plumb bob touches it. Attach strings between the stakes. Using the strings as guides, drive the 2x4 form stakes around the trench perimeter, spaced on 2 foot centers.
4. Attach the form boards to the stakes with double-headed nails. Make sure the stakes are on the outside of the boards and flush with or below them.
5. Use 2x4 stakes to brace the corners of the forms.
6. Backfill the excavation with 4 inches of gravel, then lay down a plastic vapor barrier.
7. Spread or pour concrete with a rake or hoe, compacting it gently into the footing areas. Use a shovel to move concrete into footing trench. Make the pour to about 1 inch above the forms to allow for settling. Use a long 2x4 to level the concrete. Move the board in a side-to-side motion as you pull it towards you.
8. Use finishing tools, such as a bull float and trowel, to smooth the concrete surface. Allow the concrete to cure fully (seven to ten days).
CONCRETE SLAB FOUNDATION
1. Backfill excavation with gravel; install vapor barrier.
2. Pour concrete into the forms, and spread it with a rake or shovel. Use a long 2x4 to screed the concrete level.
3.Use finishing tools, such as a bull float and trowel, to smooth the concrete surface to the desired finish.
|
